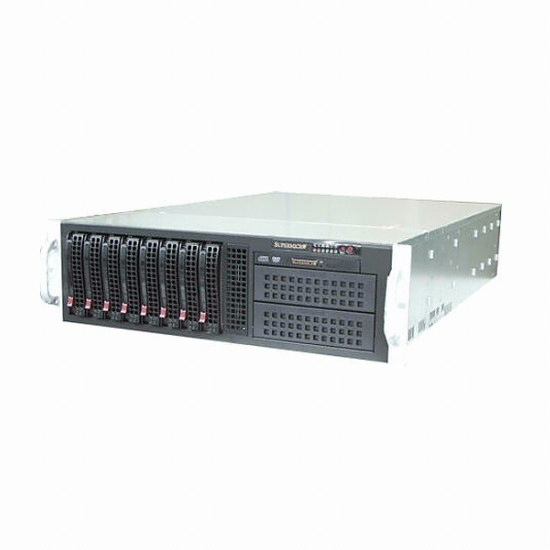

Supermicro SC835TQ-R920B 3U DS&G상품비교

/ / :

등록월: 2013.10.제조사: Supermicro이미지출처: 롯데ON

단종 된 상품입니다.

상품 상세정보

[호환성]
제조회사	Supermicro (제조사 웹사이트 바로가기)	등록년월	2013년 10월


KC인증
적합성평가인증	상세설명 / 판매 사이트 문의 인증번호 확인
안전확인인증	상세설명 / 판매 사이트 문의 인증번호 확인

Untitled Document

Product SKUs

835TQ-R800B	SuperChassis CSE-835TQ-R800B(Black)

Form Factor

3U chassis support for max. motherboard size - 13.68" x 13"

Processor Support

Dual Xeon® 1066MHz FSB Processors


Dimensions

Height	5.2" (132mm)

Width	17.7" (450mm)

Depth	25.6" (650mm)

Gross Weight	75 lbs (34 kg)

Available Colors	Black

Expansion Slots

7x full-height full-length expansion slots


Drive Bays


Hot-swap	8x 3.5" SAS / SATA Hot-swap drive trays

Backplane

1x 2U SAS / SATA Backplane with Enclosure Management


Peripheral Drives

DVD-ROM	Slim 8x DVD / 24x CD, DVD-ROM Drive


Front Panel

Buttons	Power On/Off button System Reset button

LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED

System Cooling

Fans	3x 80mm Hot-swappable Fans

	2x 80mm Rear-exhaust Fans


Operating Environment (System)

Operating Temperature Range	10 - 35°C (50° to 95° F)

Non-Operating Temperature Range	-40 - +70°C (-40° to 158° F)

Humidity Range	8 - 90% non-condensing

Non-Operating Humidity Range	5 - 95% non-condensing


Power Supply

800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC

AC Voltage	100 - 240V, 50 - 60Hz, 10 - 4 Amp

+12V	66 Amp

+5V standby	30Amp

+12V	66 Amp

-12V	0.6 Amp

+3.3V	24 Amp


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed Europe/CE Mark EN 60950/IEC 60950-Compliant CCC Certification
